SMEJ - 5000

Both sides of bellows are made with flange, angle flange, it is mainly used in low pressure pipe.

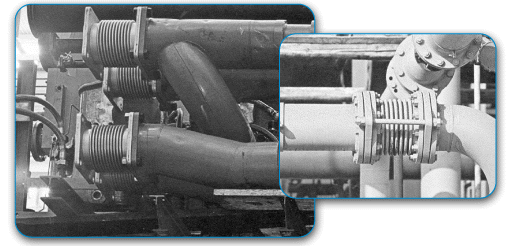

USE : it is used for low pressure pipe, an exhaust pipe, absorption extension of duct etc, an exhaust

---- -pipe of engine and vibration of blower at the in/outlet side,

Basic Specification

Dia No.	Width (mm)	Q x W (mm)	Bellows No.	Length (mm)	Axial Mov.	Lateral Defl.	Angular rotation	Spring rate		Effective diameter	Effective section area
Dia No.	Width (mm)	Q x W (mm)	Bellows No.	Length (mm)	Axial Mov.	Lateral Defl.	Angular rotation	X (kg/mm)	Y (kg/mm)	Effective diameter	Effective section area
50A	0.4	10 x 12	10	240	± 12	5.5	20.2	5	20.2	20.2	20.2
65A	0.4	10 x 12	10	250	±12	4.4	16.5	6	16.5	16.5	16.5
80A	0.4	10 x 16	6	250	±12	3.9	14.1	5	14.1	14.1	14.1
80A	0.4	10 x 16	12	340	± 25	15.8	28.1	3	28.1	28.1	28.1
100A	0.4	23 x 24	5	250	±12	3.3	11.8	6	11.8	11.8	11.8
100A	0.4	23 x 24	10	360	±5	13.0	23.6	3	23.6	23.6	23.6
125A	0.6	35 x 35	5	250	±15	3.1	10.8	9	10.8	10.8	10.8
125A	0.6	35 x 35	10	360	± 30	12.5	22.3	5	22.3	22.3	22.3
150A	0.8	45 x 38	5	300	±15	4.0	9.9	16.9	9.9	9.9	9.9
150A	0.8	45 x 38	10	440	± 30	15.9	19.9	8.5	19.9	19.9	19.9
200A	0.8	45 x 42	4	300	±16	2.6	7.6	14.0	7.6	7.6	7.6
200A	0.8	45 x 42	8	440	± 32	10.7	15.3	7.0	15.3	15.3	15.3
250A	1.0	50 x 50	4	300	±18	2.9	7.1	25.2	7.1	7.1	7.1
250A	1.0	50 x 50	7	440	± 32	8.8	12.4	14.4	12.4	12.4	12.4
300A	1.0	50 x 50	3	300	±18	2.3	6.0	27.4	6.0	6.0	6.0
			5	440	± 30	6.5	9.9	16.4	9.9	9.9	9.9
			7	524	± 42	12.4	13.9	11.7	13.9	13.9	13.9
350A	1.0	50 x 50	3	300	±23	2.9	6.6	18.8	6.6	6.6	6.6
			5	440	± 37	8.0	11.1	11.3	11.1	11.1	11.1
			6	524	± 45	11.6	13.3	9.4	13.1	13.1	13.1
400A	1.0	50 x 50	3	300	±23	2.6	9.8	21.3	9.8	9.8	9.8
			5	475	± 37	7.1	11.8	12.8	11.8	11.8	11.8
			6	545	± 45	10.3	5.1	10.6	5.1	5.1	5.1
450A	1.0	50 x 50	3	300	±23	2.2	8.4	24.8	8.4	8.4	8.4
			5	475	± 37	6.1	10.1	14.9	10.1	10.1	10.1
			6	545	± 45	8.8	4.8	12.4	4.8	4.8	4.8
500A	1.0	50 x 50	3	300	±23	2.1	8.0	26.1	8.0	8.0	8.0
			5	475	± 37	5.8	9.6	15.6	9.6	9.6	9.6
			6	545	± 45	8.4	2.8	13.0	2.8	2.8	2.8
600A	1.2	60 x 60	3	300	±16	1.0	7.0	48.2	7.0	7.0	7.0
			5	475	± 40	6.0	8.3	19.3	8.3	8.3	8.3
			6	545	± 49	8.7	2.4	16.1	2.4	2.4	2.4
700A	1.2	60 x 60	3	300	±16	0.8	2.0	55.6	2.0	2.0	2.0
			5	475	± 40	5.2	7.2	22.2	7.2	7.2	7.2
			6	545	± 48	7.5	3.2	18.5	3.2	3.2	3.2
800A	1.5	60 x 60	3	400	±24	1.6	5.3	82.0	5.3	5.3	5.3
			5	580	± 40	4.5	7.4	49.2	7.4	7.4	7.4
			6	600	± 48	6.6	2.9	41.0	2.9	2.9	2.9
900A	1.5	60 x 60	3	400	±24	1.5	4.8	90.4	4.8	4.8	4.8
			5	580	± 40	4.1	5.8	54.2	5.8	5.8	5.8
			6	640	± 48	6.0	2.6	45.2	2.6	2.6	2.6
1000A	1.5	60 x 60	3	400	±24	1.3	4.3	100.5	4.3	4.3	4.3
			5	580	± 40	3.7	5.2	60.3	5.2	5.2	5.2
			6	640	± 48	5.4	2.4	50.2	2.4	2.4	2.4
1100A	1.5	60 x 60	3	400	±24	1.2	4.0	110.1	4.0	4.0	4.0
			5	580	± 40	3.4	4.7	66.1	4.7	4.7	4.7
			6	640	± 48	5.0	3.2	55.1	3.2	3.2	3.2
1200A	1.5	60 x 60	3	400	±24	1.1	3.6	119.1	3.6	3.6	3.6
			5	580	±0	3.2	4.4	71.5	4.4	4.4	4.4
			6	640	± 48	4.5	2.0	59.6	2.0	2.0	2.0
1300A	1.5	60 x 60	3	400	±24	1.0	3.4	128.5	3.4	3.4	3.4
			5	580	± 40	2.9	4.1	77.1	4.1	4.1	4.1
			6	640	± 48	4.2	1.9	64.3	1.9	1.9	1.9
1400A	1.5	60 x 60	3	400	±24	1.0	3.1	138.0	3.1	3.1	3.1
			5	580	± 40	2.7	3.8	82.8	3.8	3.8	3.8
			6	640	± 48	4.0	1.7	69.0	1.7	1.7	1.7
1500A	1.5	60 x 60	3	400	±24	0.9	2.9	148.4	2.9	2.9	2.9
			5	580	± 40	2.5	3.5	89.0	3.5	3.5	3.5
			6	640	± 48	3.6	1.3	74.2	1.3	1.3	1.3
2000A	1.5	75 x 75	3	420	±24	0.7	2.2	194.9	2.2	2.2	2.2
			5	600	± 40	1.9	2.7	116.9	2.7	2.7	2.7
			6	600	± 48	2.8	0.8	97.4	0.8	0.8	0.8
2500A	2.0	75 x 75	2	460	±18	0.3	1.6	444.3	1.6	1.6	1.6
			4	620	± 36	1.4	2.0	222.1	2.0	2.0	2.0
			5	700	± 45	2.1	0.6	177.7	0.6	0.6	0.6
3000A	2.0	75 x 75	2	560	±18	0.3	1.3	530.5	1.3	1.3	1.3
			4	720	± 36	1.1	1.6	265.3	1.6	1.6	1.6
			5	800	± 45	1.8	1.6	212.2	1.6	1.6	1.6
