- Controlled by soft start & slow stop system.

- Main drive controlled by inverter or servo system.

- Operator safety controls.

- Stop motion controls.

- Output data of line speed and production, pitch,    winding length.

- Winding pitch controlled by variation or servo.

 Specification

Division

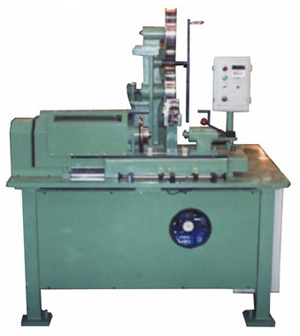

WS-1 Bobbin Winder

Number of Head

Single Head

Gross weight

400kg

Floor space

1.5 sq M

Apply to Machine

SH type, SW type, SR type, Others

Usage Material

Steel Wire

Pitch of Traverse

0.5 - 10 mm

Bobbin speed

Max 2000rpm

Number of Ends

4 - 16 ends

Drive Motor

5HP*4P
